1720650002 Electronic Components Connector Header Through Hole 2 position

Name: 1720650002 Electronic Components Connector Header Through Hole 2 position
Brand: original
Price: 1 USD

Brand Name : original

Model Number : 1720650002

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Number of Positions : 2

Number of Rows : 2

Row Spacing - Mating : 0.224" (5.70mm)

Number of Positions Loaded : All

Style : Board to Cable/Wire

Shrouding : Shrouded - 4 Wall

Mounting Type : Through Hole

Termination : Solder

Contact Length - Post : 0.147" (3.73mm)

Insulation Height : 0.583" (14.80mm)

Contact Now

1720650002 Electronic Components Connector Header Through Hole 2 position

CONN HEADER VERT 2POS

Specifications of 1720650002

TYPE	DESCRIPTION
Category	Connectors, Interconnects
Category	Headers, Male Pins
Mfr	Molex
Series	Mega-Fit
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	-
Number of Positions	2
Number of Rows	2
Row Spacing - Mating	0.224" (5.70mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.147" (3.73mm)
Overall Contact Length	-
Insulation Height	0.583" (14.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Copper
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Glow Wire Compliant
Operating Temperature	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Industrial, Telecommunications
Base Product Number	172065

Features of 1720650002

* Power-dense design with high-current terminals, tight pitch and row spacing
* Positive locking housing
* Tin-plated contacts available
* Fully isolated header pins and receptacle terminals
* Tangless terminal design
* Terminal interface with six independent points of contact (split-box terminal design)
* Polarization peg to engage with PCB
* Crush peg removal

Applications of 1720650002

* Home Appliance
- Washers and dryers Heaters and air conditioners
* Telecommunication/Networking
- Hubs and servers Power supplies and distribution
* Industrial
- Machinery and heavy equipment Lighting and automation
* Commercial Vehicle
- Unsealed electronic control modules Power converters

Environmental & Export Classifications of 1720650002

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040

1720650002 Electronic Components Connector Header Through Hole 2 position

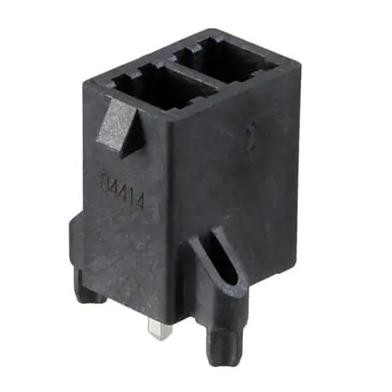

1720650002 Electronic Components Connector Header Through Hole 2 position Images
