RCLAMP0544T.TCT 15V Clamp 5A (8/20µs) IPP TVS Diode Surface Mount SLP2010P8T

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

RCLAMP0544T.TCT 15V Clamp 5A (8/20µs) IPP TVS Diode Surface Mount SLP2010P8T

Brand Name : original

Model Number : RCLAMP0544T.TCT

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Type : Steering (Rail to Rail)

Unidirectional Channels : 4

Voltage - Reverse Standoff (Typ) : 5V (Max)

Voltage - Breakdown (Min) : 6.5V

Voltage - Clamping (Max) @ Ipp : 15V

Current - Peak Pulse (10/1000µs) : 5A (8/20µs)

Power - Peak Pulse : 75W

Power Line Protection : Yes

Capacitance @ Frequency : 0.45pF @ 1MHz

Operating Temperature : -55°C ~ 125°C (TJ)

Contact Now

RCLAMP0544T.TCT 15V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SLP2010P8T

TVS DIODE 5VWM 15VC SLP2010P8T

Specifications of RCLAMP0544T.TCT

TYPE DESCRIPTION
Category TVS Diodes
Mfr Semtech Corporation
Series RailClamp®
Package Tape & Reel (TR)
Product Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6.5V
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 75W
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.45pF @ 1MHz
Operating Temperature -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 8-XFDFN
Supplier Device Package SLP2010P8T
Base Product Number RCLAMP0544

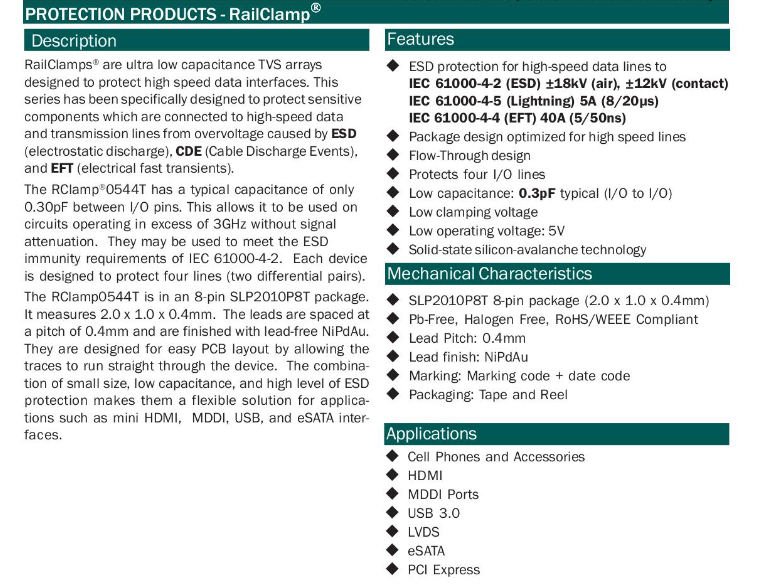

Features of RCLAMP0544T.TCT


* ESD protection for high-speed data lines to
- IEC 61000-4-2(ESD) 18kV (air)12kV (contact)
- IEC 61000-4-5(Lightning) 5A(8/20s)
- IEC 61000-4-4(EFT) 40A(5/50ns)
* Package design optimized for high speed lines
* Flow-Through design
* Protects four I/0 lines
* Low capacitance: 0.3pF typical (/0 to l/0)
* Low clamping voltage
* Low operating voltage: 5V
* Solid-state silicon-avalanche technology

Applications of RCLAMP0544T.TCT


* Cell Phones and Accessories
* HDMI
* MDDI Ports
* USB 3.0
* LVDS
* eSATA
* PCI Express


Environmental & Export Classifications of RCLAMP0544T.TCT

ATTRIBUTE DESCRIPTION
RoHS Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080

RCLAMP0544T.TCT 15V Clamp 5A (8/20µs) IPP TVS Diode Surface Mount SLP2010P8T


Product Tags:

RCLAMP0544T.TCT



15V Clamp TVS Diode



Surface Mount TVS Diode


Quality RCLAMP0544T.TCT 15V Clamp 5A (8/20µs) IPP TVS Diode Surface Mount SLP2010P8T for sale

RCLAMP0544T.TCT 15V Clamp 5A (8/20µs) IPP TVS Diode Surface Mount SLP2010P8T Images
