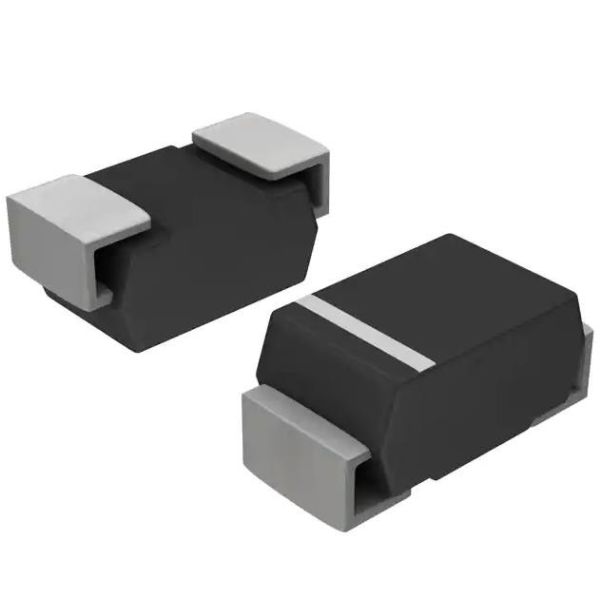

SBRA8160T3G Diode Electronic Components 60 V 1A Surface Mount SMA

Brand Name : original

Model Number : SBRA8160T3G

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Voltage - DC Reverse (Vr) (Max) : 60 V

Current - Average Rectified (Io) : 1A

Voltage - Forward (Vf) (Max) @ If : 720 mV @ 1 A

Speed : Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr : 200 µA @ 60 V

Package / Case : DO-214AC, SMA

Contact Now

SBRA8160T3G Diode Electronic Components 60 V 1A Surface Mount SMA

Specifications of SBRA8160T3G

TYPE DESCRIPTION
Category Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
Mfr onsemi
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 720 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 60 V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SBRA81

Specifications of SBRA8160T3G


• Small Compact Surface Mountable Package with J−Bent Leads
• Rectangular Package for Automated Handling
• Highly Stable Oxide Passivated Junction
• Very Low Forward Voltage Drop
• Guardring for Stress Protection
• SBRA8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable*
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Specifications of SBRA8160T3G


These devices employ the Schottky Barrier principle in a large area metal−to−silicon power diode. State of the art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity diodes in surface mount applications where compact size and weight are critical to the system.


Environmental & Export Classifications of SBRA8160T3G

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080


SBRA8160T3G Diode Electronic Components 60 V 1A Surface Mount SMA


Product Tags:

Diode Electronic Components



Surface Mount Electronic Components



SBRA8160T3G

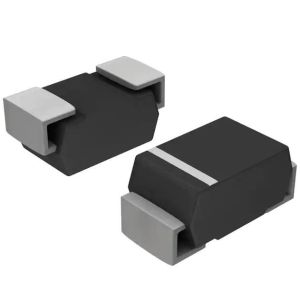

Quality SBRA8160T3G Diode Electronic Components 60 V 1A Surface Mount SMA for sale
