TPS7A4101DGNR Power Switch Ics Ic Reg Lin Pos Adj 50ma 8hvssop

Name: TPS7A4101DGNR Power Switch Ics Ic Reg Lin Pos Adj 50ma 8hvssop
Brand: original
Price: 1 USD

Brand Name : original

Model Number : TPS7A4101DGNR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status Output Configuration : Active

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 50V

Voltage - Output (Min/Fixed) : 1.175V

Voltage - Output (Max) : 48V

Voltage Dropout (Max) : 1.3V @ 50mA

Contact Now

TPS7A4101DGNR Power Switch Ics Ic Reg Lin Pos Adj 50ma 8hvssop

Linear Voltage Regulator IC Positive Adjustable 1 Output 50mA 8-HVSSOP

Specifications of TPS7A4101DGNR

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Power Management (PMIC)
	Voltage Regulators - Linear
Mfr	Texas Instruments
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	50V
Voltage - Output (Min/Fixed)	1.175V
Voltage - Output (Max)	48V
Voltage Dropout (Max)	1.3V @ 50mA
Current - Output	50mA
Current - Quiescent (Iq)	65 µA
PSRR	65dB (100Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	8-HVSSOP
Base Product Number	TPS7A4101

Features of TPS7A4101DGNR

• Wide Input Voltage Range: 7 V to 50 V

• Accuracy:

– Nominal: 1%

– Over Line, Load, and Temperature: 2.5%

• Low Quiescent Current: 25 µA

• Quiescent Current at Shutdown: 4.1 µA

• Maximum Output Current: 50 mA

• CMOS Logic-Level-Compatible Enable Pin

• Adjustable Output Voltage: about 1.175 V to 48 V

• Stable with Ceramic Capacitors:

– Input Capacitance: ≥ 1 µF

– Output Capacitance: ≥ 4.7 µF

• Dropout Voltage: 290 mV

• Built-In Current Limit and Thermal Shutdown Protection

• Package: High Thermal Performance HVSSOP-8 PowerPAD™

• Operating Temperature Range: –40°C to 125°C

Applications of TPS7A4101DGNR

• Microprocessors, Microcontrollers Powered by Industrial Busses with High Voltage Transients

• Industrial Automation

• Telecom Infrastrucure

• Automotive

• LED Lighting

• Bias Power Supplies

Environmental & Export Classifications of TPS7A4101DGNR

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

TPS7A4101DGNR Power Switch Ics Ic Reg Lin Pos Adj 50ma 8hvssop

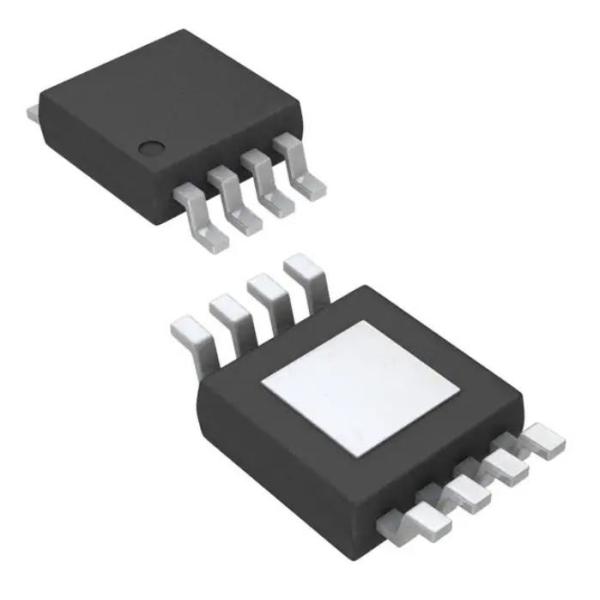

TPS7A4101DGNR Power Switch Ics Ic Reg Lin Pos Adj 50ma 8hvssop Images
