STM32F100VCT6B Power Switch ICs MCU 32BIT 256KB FLASH 100LQFP 24K x 8

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

STM32F100VCT6B Power Switch ICs MCU 32BIT 256KB FLASH 100LQFP 24K x 8

Brand Name : Original

Model Number : STM32F100VCT6B

Certification : Original

Place of Origin : Original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Part number : STM32F100VCT6B

Package : Tray

Speed : 24MHz

Number of I/O : 80

RAM Size : 24K x 8

Voltage - Supply (Vcc/Vdd) : 2V ~ 3.6V

Oscillator Type : Internal

Operating Temperature : -40°C ~ 85°C (TA)

Contact Now

STM32F100VCT6B Power Switch ICs MCU 32BIT 256KB FLASH 100LQFP 24K x 8

ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit Single-Core 24MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)

Features of STM32F100VCT6B

• Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR and programmable voltage
detector (PVD)
– 4-to-24 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
• Serial wire debug (SWD) and JTAG I/F
• DMA
– 12-channel DMA controller
– Peripherals supported: timers, ADC, SPIs,
I
2Cs, USARTs and DACs
• 1 × 12-bit, 1.2 µs A/D converter (up to 16 ch.)
– Conversion range: 0 to 3.6 V
– Temperature sensor
• 2 × 12-bit D/A converters
• Up to 112 fast I/O ports
– 51/80/112 I/Os, all mappable on 16
external interrupt vectors and almost all
5 V-tolerant

Specifications of STM32F100VCT6B

Mfr
STMicroelectronics
Series
STM32F1
Product
STM32F100VCT6B
Core Processor
ARM® Cortex®-M3
Core Size
32-Bit Single-Core
Speed
24MHz
Connectivity
I²C, IrDA, LINbus, SPI, UART/USART
Peripherals
DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT
Number of I/O
80
Program Memory Size
256KB (256K x 8)
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
24K x 8
Voltage - Supply (Vcc/Vdd)
2V ~ 3.6V
Data Converters
A/D 16x12b; D/A 2x12b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
100-LQFP
Supplier Device Package
100-LQFP (14x14)
Base Product Number
STM32F100

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

STM32F100VCT6B Power Switch ICs MCU 32BIT 256KB FLASH 100LQFP 24K x 8


Quality STM32F100VCT6B Power Switch ICs MCU 32BIT 256KB FLASH 100LQFP 24K x 8 for sale

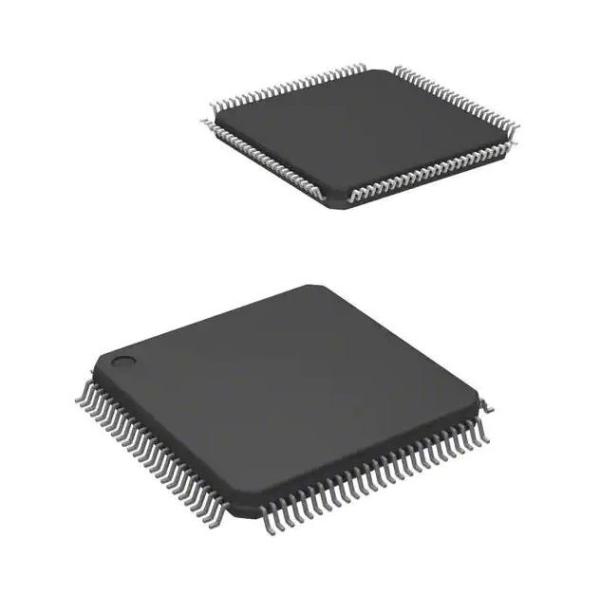

STM32F100VCT6B Power Switch ICs MCU 32BIT 256KB FLASH 100LQFP 24K x 8 Images
