TPS65217CRSLR Power Switch Ics Ic Pmic Batt Pwr Syst 48vqfn

Brand Name : original

Model Number : TPS65217CRSLR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Voltage - Supply Operating Temperature : 2.75V ~ 5.8V

Operating Temperature : -40°C ~ 105°C

Mounting Type : Surface Mount

Package / Case : 48-VFQFN Exposed Pad

Supplier Device Package : 48-VQFN (6x6)

Base Product Number : TPS65217

Mfr : Texas Instruments

Product Status : Active

Contact Now

TPS65217CRSLR Power Switch Ics Ic Pmic Batt Pwr Syst 48vqfn

Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply PMIC 48-VQFN (6x6)

Specifications of TPS65217CRSLR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Power Management - Specialized
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Applications Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply
Current - Supply -
Voltage - Supply 2.75V ~ 5.8V
Operating Temperature -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 48-VFQFN Exposed Pad
Supplier Device Package 48-VQFN (6x6)
Base Product Number TPS65217

Features of TPS65217CRSLR

• Charger and Power Path
– 2-A Output Current on Power Path
– Linear Charger; 700-mA Maximum Charge Current
– 20-V Tolerant USB and AC Inputs
– Thermal Regulation, Safety Timers
– Temperature Sense Input
• Step-Down Converter (DCDC1, DCDC2,DCDC3)
– Three Step-Down Converter With Integrated Switching FETs
– 2.25-MHz Fixed Frequency Operation
– Power-Save Mode at Light-Load Current
– Output Voltage Accuracy in PWM Mode 2%
– 100% Duty Cycle for Lowest Dropout
– Typical 15-µA Quiescent per Converter
– Passive Discharge to Ground When Disabled
• LDO Regulators (LDO1, LDO2)
– Two Adjustable LDOs
– LDO2 can be Configured to Track DCDC3
– Typical 15-µA Quiescent Current
• Load Switches (LDO3, LDO4)
– Two Independent Load Switches That Can Be
Configured as LDOs
• WLED Driver
– Internally Generated PWM for Dimming Control
– 38-V Open-LED Protection
– Supports Two Strings of up to 10 LEDs at 25 mA Each
– Internal Low-Side Current Sinks
• Protection
– Undervoltage Lockout and Battery Fault Comparator
– Always-On Push-Button Monitor
– Hardware Reset Pin
– Password Protected I2C Registers
• Interface
– I2C Interface (Address 0x24)
– Password-Protected I2C Registers

Applications of TPS65217CRSLR

• Sitara™ AM335x Processor Power
• Portable Navigation Systems
• Tablet Computing
• 5-V Industrial Equipment

Environmental & Export Classifications of TPS65217CRSLR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

TPS65217CRSLR Power Switch Ics Ic Pmic Batt Pwr Syst 48vqfn


Quality TPS65217CRSLR Power Switch Ics Ic Pmic Batt Pwr Syst 48vqfn for sale

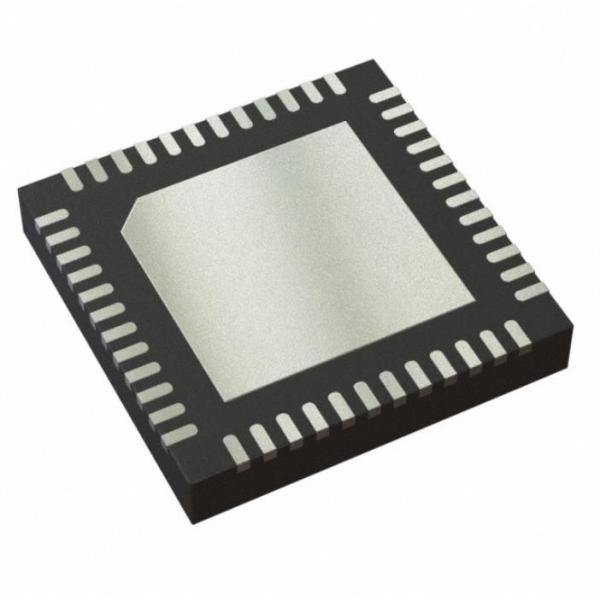

TPS65217CRSLR Power Switch Ics Ic Pmic Batt Pwr Syst 48vqfn Images
