TPS65100RGERG Power Switch Ics Ic Reg Ctrlr Tft 4out 24vqfn

Name: TPS65100RGERG Power Switch Ics Ic Reg Ctrlr Tft 4out 24vqfn
Brand: original
Price: 1 USD

Brand Name : original

Model Number : TPS65100RGERG

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status Applications : Active

Applications : Controller, TFT LCD

Voltage - Input : 2.7V ~ 5.8V

Number of Outputs : 4

Voltage - Output : Multiple

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 24-VFQFN Exposed Pad

Contact Now

TPS65100RGERG Power Switch Ics Ic Reg Ctrlr Tft 4out 24vqfn

- Controller, TFT LCD Voltage Regulator IC 4 Output 24-VQFN (4x4)

Specifications of TPS65100RGERG

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Power Management (PMIC)
	Special Purpose Regulators
Mfr	Texas Instruments
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Active
Applications	Controller, TFT LCD
Voltage - Input	2.7V ~ 5.8V
Number of Outputs	4
Voltage - Output	Multiple
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	24-VFQFN Exposed Pad
Supplier Device Package	24-VQFN (4x4)
Base Product Number	TPS65100

Features of TPS65100RGERG

• 2.7-V to 5.8-V Input Voltage Range

• 1.6-MHz Fixed Switching Frequency

• 3 Independent Adjustable Outputs

• Boost Converter Output Voltage VO1 of up to 15 VWith 1% Output Voltage Accuracy

• Negative Regulated Charge Pump VO2

• Positive Charge Pump VO3

• Integrated VCOM Buffer

• Virtual Synchronous Converter Technology inBoost Converter

• Auxiliary 3.3-V Linear Regulator Controller

• Internal Soft Start

• Internal Power-On Sequencing

• Fault Detection of all Outputs (TPS65100/05)

• No Fault Detection (TPS65101)

• Thermal Shutdown

• Available in TSSOP-24 and VQFN-24PowerPAD™ Packages

Applications of TPS65100RGERG

• TFT LCD Displays for Notebooks

• TFT LCD Displays for Monitors

• Portable DVD Players

• Tablet PCs

• Car Navigation Systems

• Industrial Displays

Environmental & Export Classifications of TPS65100RGERG

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

TPS65100RGERG Power Switch Ics Ic Reg Ctrlr Tft 4out 24vqfn

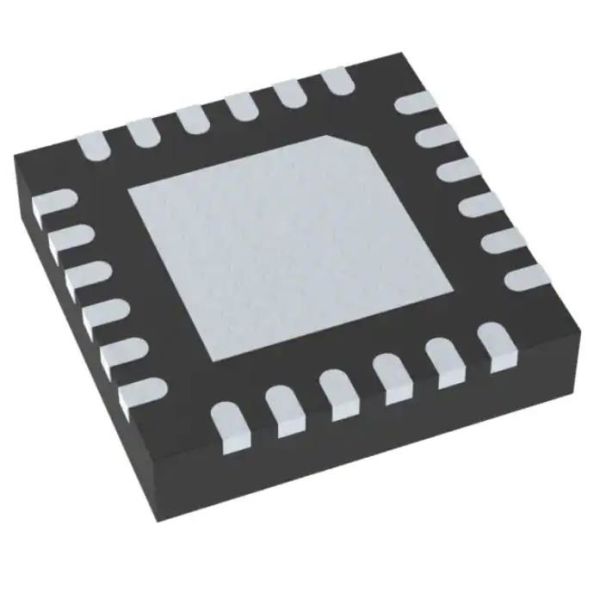

TPS65100RGERG Power Switch Ics Ic Reg Ctrlr Tft 4out 24vqfn Images
