TPS60403DBVR Charge Pump Switching Regulator IC Positive 2Vin

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

TPS60403DBVR Charge Pump Switching Regulator IC Positive 2Vin

Brand Name : original

Model Number : TPS60403DBVR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Output Type : Fixed

Number of Outputs : 1

Voltage - Input (Min) : 1.8V

Voltage - Input (Max) : 5.25V

Voltage - Output (Min/Fixed) : -Vin, 2Vin, Vin/2

Current - Output : 60mA

Frequency - Switching : 250kHz

Operating Temperature : -40°C ~ 125°C (TJ)

Contact Now

TPS60403DBVR Charge Pump Switching Regulator IC Positive 2Vin

Specifications of TPS60403DBVR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Function Ratiometric
Output Configuration Positive or Negative
Topology Charge Pump
Output Type Fixed
Number of Outputs 1
Voltage - Input (Min) 1.8V
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) -Vin, 2Vin, Vin/2
Voltage - Output (Max) -
Current - Output 60mA
Frequency - Switching 250kHz
Synchronous Rectifier No
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Supplier Device Package SOT-23-5
Base Product Number TPS60403


Features of TPS60403DBVR


• Inverts Input Supply Voltage
• Up to 60-mA Output Current
• Only Three Small 1-µF Ceramic Capacitors Needed
• Input Voltage Range From 1.6 V to 5.5 V
• PowerSave-Mode for Improved Efficiency at LowOutput Currents (TPS60400)
• Device Quiescent Current Typical 65 µA
• Integrated Active Schottky-Diode for Start-up Into Load
• Small 5-Pin SOT-23 Package
• Evaluation Module Available TPS60400EVM-178


Applications of TPS60403DBVR


• LCD Bias
• GaAs Bias for RF Power Amps
• Sensor Supply in Portable Instruments
• Bipolar Amplifier Supply
• Medical Instruments
• Battery-Operated Equipment

Environmental & Export Classifications of TPS60403DBVR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

TPS60403DBVR Charge Pump Switching Regulator IC Positive 2Vin


Product Tags:

TPS60403DBVR



Charge Pump Switching Regulator IC



TPS60403DBVR Switching Regulator IC


Quality TPS60403DBVR Charge Pump Switching Regulator IC Positive 2Vin for sale

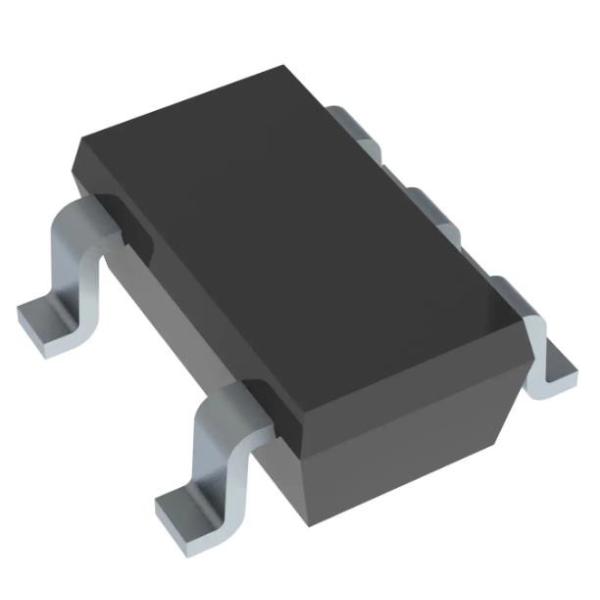

TPS60403DBVR Charge Pump Switching Regulator IC Positive 2Vin Images
