AMC1306M25DWVR Isolated Module 16 b 78k CMOS, Serial 8-SOIC

Brand Name : original

Model Number : AMC1306M25DWVR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Channels : 1

Resolution (Bits) : 16 b

Sampling Rate (Per Second) : 78k

Data Interface : CMOS, Serial

Voltage Supply Source : Analog and Digital

Voltage - Supply : 2.7V ~ 5.5V

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Contact Now

ADS1605IPAPR 16 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 64-HTQFP

Specifications of AMC1306M25DWVR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Data Acquisition
ADCs/DACs - Special Purpose
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Type Isolated Module
Number of Channels 1
Resolution (Bits) 16 b
Sampling Rate (Per Second) 78k
Data Interface CMOS, Serial
Voltage Supply Source Analog and Digital
Voltage - Supply 2.7V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package 8-SOIC
Base Product Number AMC1306


Features of AMC1306M25DWVR


• Pin-compatible family optimized for shunt-resistorbased current measurements:
– ±50-mV or ±250-mV input voltage ranges
– Manchester coded or uncoded bitstream options
• Excellent DC performance:
– Offset error: ±50 µV or ±100 µV (max)
– Offset drift: 1 µV/°C (max)
– Gain error: ±0.2% (max)
– Gain drift: ±40 ppm/°C (max)
• Transient immunity: 100 kV/µs (typ)
• System-level diagnostic features
• Safety-related certifications:
– 7000-VPEAK reinforced isolation per DIN VDE V 0884-11: 2017-01
– 5000-VRMS isolation for 1 minute per UL1577
– CAN/CSA no. 5A-component acceptance service notice and IEC 62368-1 end equipment standard
• Fully specified over the extended industrial temperature range: –40°C to +125°C


Applications of AMC1306M25DWVR


• Shunt-resistor-based current sensing and isolated voltage measurements in:
– Industrial motor drives
– Photovoltaic inverters
– Uninterruptible power supplies

Environmental & Export Classifications of AMC1306M25DWVR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

AMC1306M25DWVR Isolated Module 16 b 78k CMOS, Serial 8-SOIC

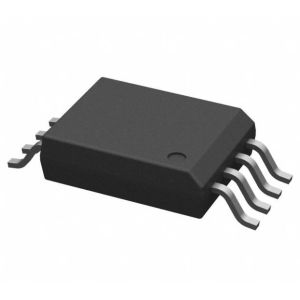

Quality AMC1306M25DWVR Isolated Module 16 b 78k CMOS, Serial 8-SOIC for sale
