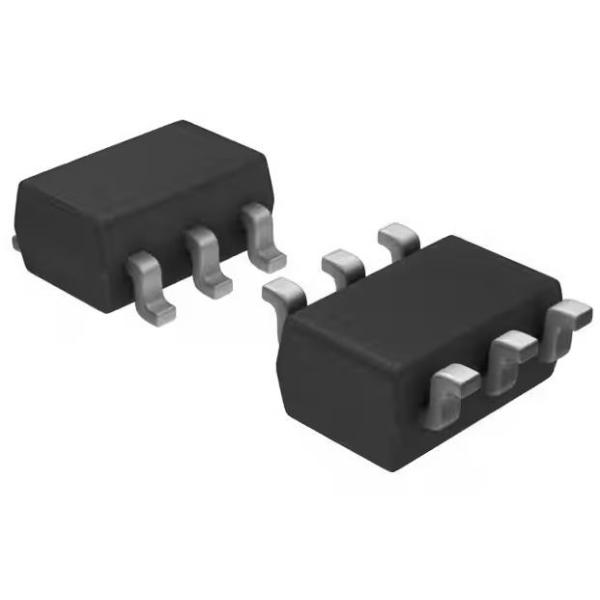

SN74LVC2GU04DBVR Inverter Integrated Circuit Chip 2 Channel SOT-23-6

Brand Name : original

Model Number : SN74LVC2GU04DBVR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Logic Type : Inverter

Number of Circuits : 2

Number of Inputs : 2

Max Propagation Delay @ V, Max CL : 3.5ns @ 5V, 50pF

Voltage - Supply : 1.65V ~ 5.5V

Current - Quiescent (Max) : 10 µA

Current - Output High, Low : 32mA, 32mA

Input Logic Level - Low : 0.41V ~ 1.38V

Contact Now

SN74LVC2GU04DBVR Inverter Integrated Circuit Chip 2 Channel SOT-23-6


Specifications of SN74LVC2GU04DBVR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Logic
Gates and Inverters
Mfr Texas Instruments
Series 74LVC
Package Tape & Reel (TR)
Cut Tape (CT)
Logic Type Inverter
Number of Circuits 2
Number of Inputs 2
Features -
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 10 µA
Current - Output High, Low 32mA, 32mA
Input Logic Level - Low 0.41V ~ 1.38V
Input Logic Level - High 1.24V ~ 4.13V
Max Propagation Delay @ V, Max CL 3.5ns @ 5V, 50pF
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package SOT-23-6
Package / Case SOT-23-6
Base Product Number 74LVC2GU04

Features of SN74LVC2GU04DBVR



* Available in the Texas Instruments NanoFree rmPackage
* Supports 5-V Vcc Operation
* lnputs Accept Voltages to 5.5 V
* Max tpd of 3.7 ns at 3.3 V
* Low Power Consumption, 10-A Max lcc
* +24-mA Output Drive at 3.3 V
* Typical Volp (Output Ground Bounce)<0.8 V at Vcc = 3.3 V, TA = 25C
* Typical VoHv (Output Vo Undershoot)>2 V at Vcc = 3.3 V, TA = 25C
* loff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
* Can Be Used as a Down Translator toTranslate Inputs From a Max of 5.5 V Down tothe Vcc Level
* Unbuffered Outputs
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class Il
* ESD Protection Exceeds JESD
- 222000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Applications of SN74LVC2GU04DBVR

This dual inverter is designed for 1.65-V to 5.5-V VCC operation.


Environmental & Export Classifications of SN74LVC2GU04DBVR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
