ATF1500A-10JU Integrated Circuit Chip IC CPLD 32MC 10NS 44PLCC

ATF1500A-10JU Integrated Circuit Chip IC CPLD 32MC 10NS 44PLCC

Specifications of ATF1500A-10JU

Features of ATF1500A-10JU

• High-density, High-performance Electrically-erasable Complex Programmable Logic Device
– 44-pin, 32 I/O CPLD
– 7.5 ns Maximum Pin-to-pin Delay
– Registered Operation Up to 125 MHz
– Fully Connected Input and Feedback Logic Array
– Backward Compatibility with ATF1500/L Software and Hardware
• Flexible Logic Macrocell
– D/T/Latch Configurable Flip-flops
– Global and Individual Register Control Signals
– Global and Individual Output Enable
– Programmable Output Slew Rate
• Advanced Power Management Features
– Automatic 3 mA Standby (ATF1500AL)
– Pin-controlled 10 mA Standby Mode
– Programmable Pin-keeper Inputs and I/Os
• Available in Commercial and Industrial Temperature Ranges
• Available in 44-lead PLCC and TQFP Packages
• Advanced Flash Technology
– 100% Tested
– Completely Reprogrammable
– 100 Program/Erase Cycles
– 20 Year Data Retention
– 2000V ESD Protection
– 200 mA Latch-up Immunity
• Supported by Popular third-arty Tools
• Security Fuse Feature
• Pin-compatible with the Most Commonly Used Devices
• Green (Pb/Halide-fee/RoHS Compliant) Package Options

Decriptions of RN73H1JTTD1072B25

The ATF1500A is a high-performance, high-density complex PLD.

Environmental & Export Classifications of ATF1500A-10JU

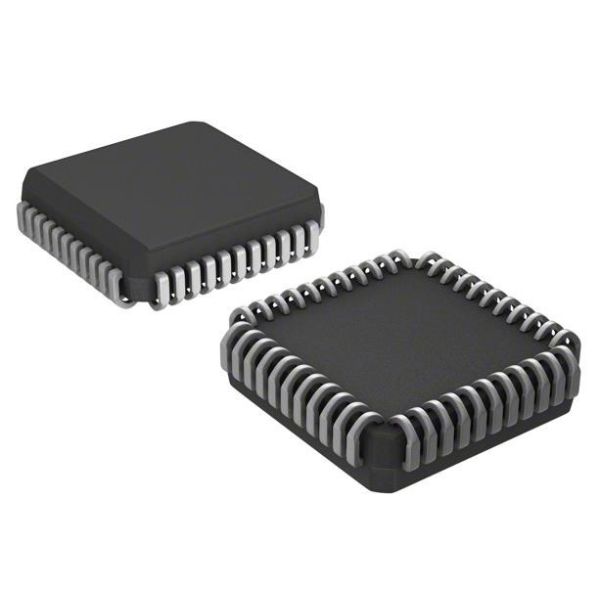

ATF1500A-10JU Integrated Circuit Chip IC CPLD 32MC 10NS 44PLCC Images
