SN74AVC16T245DGGR Translation Transceiver 2 Element 8 Bit per Element 3-State

Name: SN74AVC16T245DGGR Translation Transceiver 2 Element 8 Bit per Element 3State
Brand: original
Price: 1 USD

Brand Name : original

Model Number : SN74AVC16T245DGGR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Logic Type : Translation Transceiver

Number of Elements : 8

Output Type : 3-State

Current - Output High, Low : 12mA, 12mA

Voltage - Supply : 1.2V ~ 3.6V

Operating Temperature : -40°C ~ 85°C (TA)

Supplier Device Package : 48-TSSOP

Contact Now

SN74AVC16T245DGGR Translation Transceiver 2 Element 8 Bit per Element 3-State

Specifications of SN74AVC16T245DGGR

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Logic
	Buffers, Drivers, Receivers, Transceivers
Mfr	Texas Instruments
Series	74AVC
Package	Tape & Reel (TR)
	Cut Tape (CT)
Product Status	Active
Logic Type	Translation Transceiver
Number of Elements	2
Number of Bits per Element	8
Input Type	-
Output Type	3-State
Current - Output High, Low	12mA, 12mA
Voltage - Supply	1.2V ~ 3.6V
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	48-TFSOP (0.240", 6.10mm Width)
Supplier Device Package	48-TSSOP
Base Product Number	74AVC16T245

Features of SN74AVC16T245DGGR

* Control Inputs V/V. Levels Are Referenced toVccA Voltage
* Vcc lsolation Feature - lf Either Vcc Input s atGND, Both Ports Are in the High-lmpedance State
* Overvoltage-Tolerant Inputs and Outputs AllowMixed-Voltage-Mode Data Communications
* Fully Configurable Dual-Rail Design Allows EachPort to Operate Over the Full 1.2 V to 3.6 VPower-Supply Range
* loff Supports Partial-Power-Down Mode Operation
* I/Os Are 4.6 V Tolerant
* Maximum Data Rates
- 380 Mbps (1.8 V to 3.3 V Level-Shifting)
- 200 Mbps (<1.8 V to 3.3 V Level-Shifting)
- 200 Mbps (Level-Shifting to 2.5 V or 1.8 V)
- 150 Mbps (Level-Shifting to 1.5 V)
- 100 Mbps (Level-Shifting to 1.2 V)
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class Il
* ESD Protection Exceeds JESD 22
- 8000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Applications of SN74AVC16T245DGGR

• Personal Electronics
• Industrial
• Enterprise
• Telecom

Environmental & Export Classifications of SN74AVC16T245DGGR

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

SN74AVC16T245DGGR Translation Transceiver 2 Element 8 Bit per Element 3-State

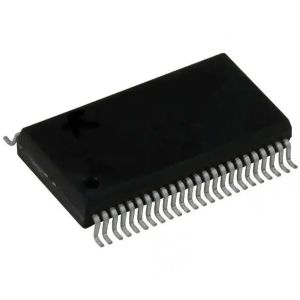

SN74AVC16T245DGGR Translation Transceiver 2 Element 8 Bit per Element 3-State Images
