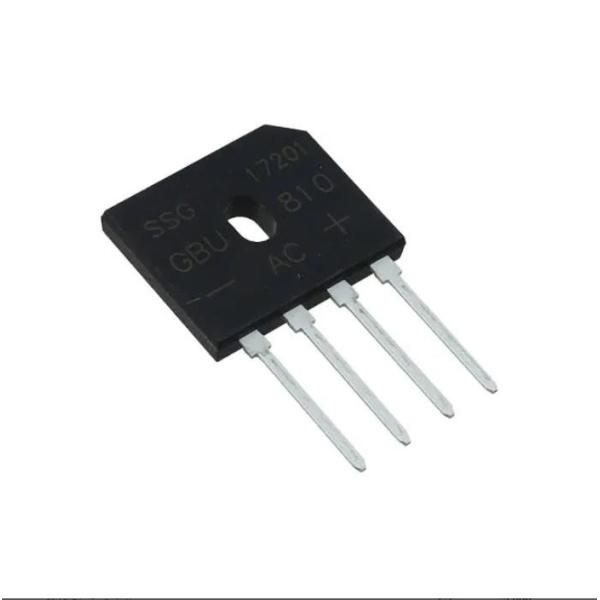

GBU806 General Purpose Relays Bridge Rect 1phase 600v 8a Gbu

Brand Name : original

Model Number : GBU806

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Package : Tube

Product Status : Active

Diode Type : Single Phase

Technology : Standard

Voltage - Peak Reverse (Max) : 600 V

Current - Average Rectified (Io) : 8 A

Voltage - Forward (Vf) (Max) @ If : 1.1 V @ 8 A

Current - Reverse Leakage @ Vr : 5 µA @ 600 V

Contact Now

GBU806 General Purpose Relays Bridge Rect 1phase 600v 8a Gbu

Bridge Rectifier Single Phase Standard 600 V Through Hole GBU

Specifications of GBU806

TYPE DESCRIPTION
Category Discrete Semiconductor Products
Diodes
Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 8 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 8 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package GBU
Base Product Number GBU806

Features of GBU806

• Glass passivated die construction

• Low forward voltage drop

• High current capability

• High surge current capability

• Plastic material-UL flammability 94V-0

• This is a Pb • Free Device

• All SMC parts are traceable to the wafer lot

• Additional testing can be offered upon request

Mechanical Data of GBU806

• Case: GBU, Molded plastic

• Terminals: Plated leads solderable per MIL-STD-202, Method 208

• Polarity: as marked on case

• Mounting Position: Any

• Lead Free: For RoHS / Lead Free Version

Environmental & Export Classifications of GBU806

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
GBU806 General Purpose Relays Bridge Rect 1phase 600v 8a Gbu


Quality GBU806 General Purpose Relays Bridge Rect 1phase 600v 8a Gbu for sale

GBU806 General Purpose Relays Bridge Rect 1phase 600v 8a Gbu Images
