VN7016AJTR Transistor Ic Chip Pwr Drvr N-Chan 1:1 Pwrsso16 Driver

Product Categories

SZ ADE Electronics Co., Ltd

Contact Now

VN7016AJTR Transistor Ic Chip Pwr Drvr N-Chan 1:1 Pwrsso16 Driver

Name: VN7016AJTR Transistor Ic Chip Pwr Drvr NChan 11 Pwrsso16 Driver
Brand: original
Price: 1 USD

Brand Name : original

Model Number : VN7016AJTR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Not For New Designs

Switch Type : General Purpose

Number of Outputs : 1

Ratio - Input:Output : 0.042361111

Output Configuration : High Side

Output Type : N-Channel

Interface : On/Off

Voltage - Load : 4V ~ 28V

Contact Now

VN7016AJTR Transistor Ic Chip Ic Pwr Drvr N-Chan 1:1 Pwrsso16

Power Switch/Driver 1:1 N-Channel 55A PowerSSO-16

Specifications of VN7016AJTR

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Power Management (PMIC)
	Power Distribution Switches, Load Drivers
Mfr	STMicroelectronics
Series	VIPower™
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Not For New Designs
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4V ~ 28V
Voltage - Supply (Vcc/Vdd)	Not Required
Current - Output (Max)	55A
Rds On (Typ)	16mOhm
Input Type	Non-Inverting
Features	Auto Restart, Status Flag
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerSSO-16
Package / Case	16-PowerLFSOP (0.154", 3.90mm Width)
Base Product Number	VN7016

Features of VN7016AJTR

• Automotive qualified

• General

− Single channel smart high-side driver with MultiSense analog feedback

− Very low standby current

− Compatible with 3 V and 5 V CMOS outputs

• MultiSense diagnostic functions

− Multiplexed analog feedback of: load current with high precision proportional current mirror, VCC supply voltage and

TCHIP device temperature

− Overload and short to ground (power limitation) indication

− Thermal shutdown indication

− OFF-state open-load detection

− Output short to VCC detection

− Sense enable/disable

• Protections

− Undervoltage shutdown

− Overvoltage clamp

− Load current limitation

− Self limiting of fast thermal transients

− Configurable latch-off on overtemperature or power limitation with dedicated fault reset pin

− Loss of ground and loss of VCC

− Reverse battery with external components

− Electrostatic discharge protection

Applications of VN7016AJTR

• All types of Automotive resistive, inductive and capacitive loads

• Specially intended for Automotive Headlamps

Environmental & Export Classifications of VN7016AJTR

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

VN7016AJTR Transistor Ic Chip Pwr Drvr N-Chan 1:1 Pwrsso16 Driver

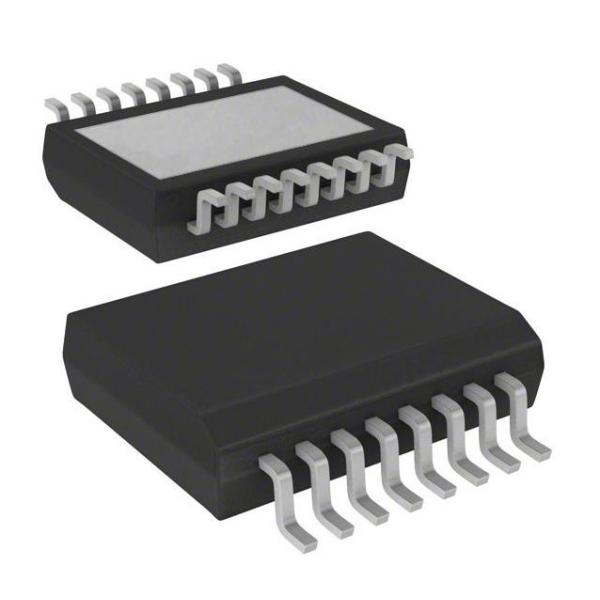

VN7016AJTR Transistor Ic Chip Pwr Drvr N-Chan 1:1 Pwrsso16 Driver Images
