ISO7762FDBQR General Purpose Digital Isolator 100Mbps 3000Vrms 6 Channel

Features of of ISO7762FDBQR

• 100 Mbps data rate
• Robust isolation barrier:
– >100-Year projected lifetime
– Up to 5000 VRMS isolation rating
– Up to 12.8 kV surge capability
– ±100 kV/μs Typical CMTI
• Wide supply range: 2.25 V to 5.5 V
• 2.25-V to 5.5-V Level translation
• Default output high (ISO776x) and low (ISO776xF)
Options
• Wide temperature range: –55°C to +125°C
• Low power consumption, typical 1.4 mA per
channel at 1 Mbps
• Low propagation delay: 11 ns typical at 5 V
• Robust Electromagnetic Compatibility (EMC):
– System-level ESD, EFT, and surge immunity
– ±8 kV IEC 61000-4-2 Contact discharge
protection across isolation barrier
– Low emissions
• Wide-SOIC (DW-16) and SSOP (DBQ-16)
package options
• Automotive version available: ISO776x-Q1
• Safety-related certifications:
– Reinforced insulation per DIN V VDE V
0884-11:2017-01
– UL 1577 component recognition program
– CSA Certification per IEC 60950-1, IEC
62368-1, and IEC 60601-1
– CQC Certification per GB4943.1-2011
– TUV Certification according to EN 60950-1 and
EN 61010-1

3000Vrms Texas Instruments Digital Isolator

100Mbps Texas Instruments Digital Isolator

6 Channel ISO7762FDBQR

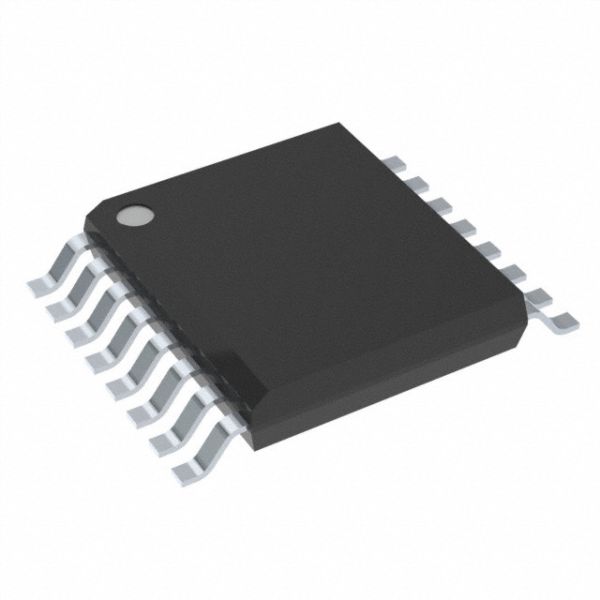

ISO7762FDBQR General Purpose Digital Isolator 100Mbps 3000Vrms 6 Channel Images
