LM5045SQX Integrated Circuit Chip Converter Offline Full Bridge Topology 2MHz

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

LM5045SQX Integrated Circuit Chip Converter Offline Full Bridge Topology 2MHz

Brand Name : Original

Model Number : LM5045SQX/NOPB

Certification : Original

Place of Origin : Original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Package : Tape & Reel

Voltage - Supply (Vcc/Vdd) : 14V ~ 100V

Output Type : Adjustable

Frequency - Switching : Up to 2MHz

Package / Case : 28-WFQFN Exposed Pad

Supplier Device Package : 28-WQFN (5x5)

Contact Now

LM5045SQX / NOPB IC Converter Offline Full-Bridge Topology Up to 2MHz 28-WQFN (5x5)
Product Attributes of LM5045SQX/NOPB
TYPE
DESCRIPTION
Category
Integrated Circuits (ICs)
Power Management (PMIC)
AC DC Converters, Offline Switches
Mfr
Ti
Series
-
Product Status
Active
Output Isolation
Isolated
Internal Switch(s)
No
Voltage - Breakdown
-
Topology
Full-Bridge
Voltage - Supply (Vcc/Vdd)
14V ~ 100V
Duty Cycle
-
Frequency - Switching
Up to 2MHz
Fault Protection
Current Limiting, Over Temperature, Over Voltage
Control Features
Frequency Control, Soft Start, Sync
Operating Temperature
-40°C ~ 125°C (TJ)
Package / Case
28-WFQFN Exposed Pad
Supplier Device Package
28-WQFN (5x5)
Mounting Type
Surface Mount
Base Product Number
LM5045

Features of LM5045SQX/NOPB

Highest Integration Controller for Small Form

High-Voltage Start-Up Regulator

Intelligent Sync Rectifier Start-Up Allows Linear Turnon Into Prebiased Loads

Synchronous Rectifiers Disabled in UVLO mode and Hiccup Mode

Two Independent, Programmable Synchronous Rectifier Dead-Time Adjustments

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

LM5045SQX Integrated Circuit Chip Converter Offline Full Bridge Topology 2MHz


Product Tags:

LM5045SQX NOPB



LM5045SQX Integrated Circuit Chip



2MHz Integrated Circuit Chip


Quality LM5045SQX Integrated Circuit Chip Converter Offline Full Bridge Topology 2MHz for sale

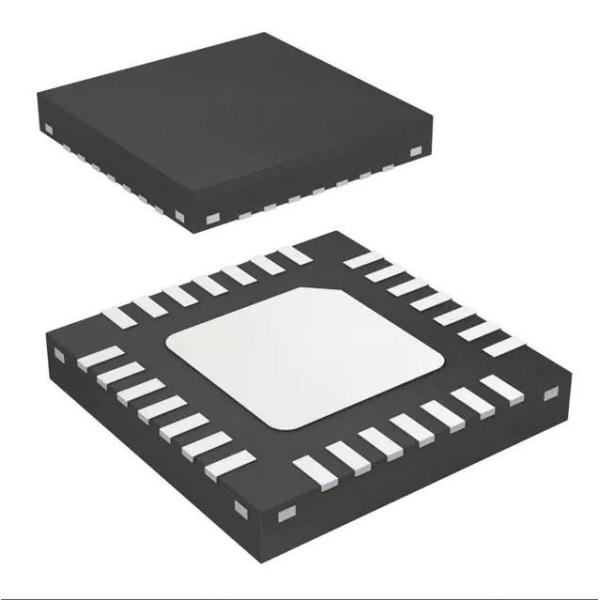

LM5045SQX Integrated Circuit Chip Converter Offline Full Bridge Topology 2MHz Images
