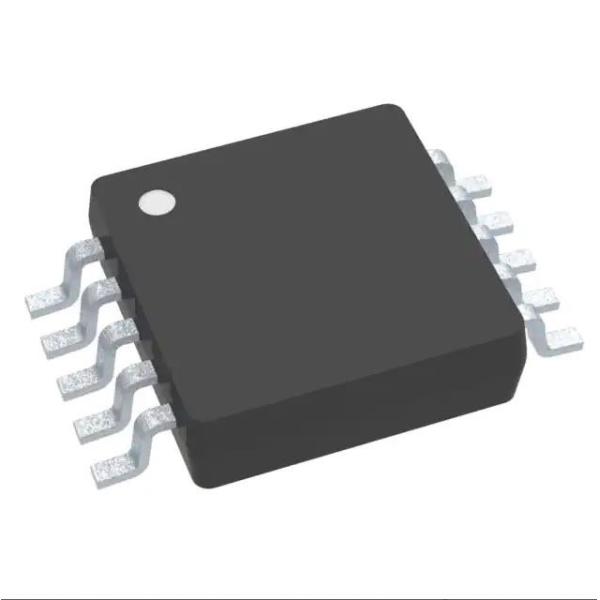

LM5022QDGSRQ1 IC REG CTRLR BOOST / SEPIC 10VSSOP Step Down IC

Brand Name : TI

Model Number : LM5022QDGSRQ1

Certification : Original

Place of Origin : Original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Topology : Boost, SEPIC

Number of Outputs : 1

Output Phases : 1

Voltage - Supply (Vcc/Vdd) : 6V ~ 60V

Frequency - Switching : 200kHz ~ 2.24MHz

Duty Cycle (Max) : 95%

Operating Temperature : -40°C ~ 125°C (TJ)

Contact Now

LM5022QDGSRQ1 IC REG CTRLR BOOST / SEPIC 10VSSOP Step-Down DC-DC Controller
Product Attributes of LM5022QDGSRQ1
TYPE
DESCRIPTION
Category
Integrated Circuits (ICs)
Power Management (PMIC)
DC DC Switching Controllers
Mfr
TI
Series
Automotive, AEC-Q100
Package Tape & Reel
Product Status
Active
Output Type
Transistor Driver
Function
Step-Up, Step-Up/Step-Down
Output Configuration
Positive
Topology
Boost, SEPIC
Number of Outputs
1
Output Phases
1
Voltage - Supply (Vcc/Vdd)
6V ~ 60V
Frequency - Switching
200kHz ~ 2.24MHz
Duty Cycle (Max)
95%
Synchronous Rectifier
No
Clock Sync
Yes
Serial Interfaces
-
Control Features
Frequency Control, Soft Start
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package
10-VSSOP
Base Product Number
LM5022

Features of LM5022QDGSRQ1

• AEC-Q100 Grade 1 Qualified with the following
results:
– Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C5
• Internal 60-V Start-Up Regulator
• 1-A Peak MOSFET Gate Driver
• VIN Range: 6 V to 60 V (operate down to 3 V after
startup)
• Duty Cycle Limit of 90%
• Programmable UVLO with Hysteresis
• Cycle-by-Cycle Current Limit
• Single Resistor Oscillator Frequency Set
• Adjustable Switching Frequency to 2.2MHz
• External Clock Synchronization
• Slope Compensation
• Adjustable Soft Start
• 10-Pin VSSOP Package

Applications of LM5022QDGSRQ1


• Boost Converter
• SEPIC Converter

LM5022QDGSRQ1 IC REG CTRLR BOOST / SEPIC 10VSSOP Step Down IC


Product Tags:

LM5022QDGSRQ1 IC



IC REG CTRLR BOOST



SEPIC 10VSSOP Step Down IC
