8BIT 32KB FLASH 32LQFP MCU IC Microcontroller STM8S005K6T6CTR

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

8BIT 32KB FLASH 32LQFP MCU IC Microcontroller STM8S005K6T6CTR

Brand Name : original

Model Number : STM8S005K6T6CTR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Program Memory Type : FLASH

EEPROM Size : 128 x 8

RAM Size : 2K x 8

Voltage - Supply (Vcc/Vdd) : 2.95V ~ 5.5V

Data Converters : A/D 7x10b

Oscillator Type : Internal

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Contact Now

STM8S005K6T6CTR Emmc Memory Chip Ic Mcu 8bit 32kb Flash 32lqfp
STM8A STM8S Microcontroller IC 8-Bit 16MHz 32KB (32K x 8) FLASH 32-LQFP (7x7)

Specifications of STM8S005K6T6CTR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr STMicroelectronics
Series STM8S
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Digi-Key Programmable Not Verified
Core Processor STM8A
Core Size 8-Bit
Speed 16MHz
Connectivity I²C, IrDA, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 25
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 2.95V ~ 5.5V
Data Converters A/D 7x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 32-LQFP
Supplier Device Package 32-LQFP (7x7)
Base Product Number STM8

Features of STM8S005K6T6CTR

Core
• Max fCPU: 16 MHz
• Advanced STM8 core with Harvard architecture and 3-stage pipeline
• Extended instruction set
Memories
• Medium-density Flash/EEPROM
– Program memory: 32 Kbytes of Flash memory; data retention 20 years at 55 °C after 100 cycles
– Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles
• RAM: 2 Kbytes Clock, reset and supply management
• 2.95 V to 5.5 operating voltage
• Flexible clock control, 4 master clock sources
– Low-power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low-power 128 kHz RC
• Clock security system with clock monitor
• Power management
– Low-power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
– Permanently active, low-consumption power-on and power-down reset
Interrupt management
• Nested interrupt controller with 32 interrupts
• Up to 37 external interrupts on 6 vectors

Applications of STM8S005K6T6CTR

• Clock prescaler: To get the best compromise between speed and current consumption the clock frequency to the CPU and peripherals can be adjusted by a programmable prescaler.
• Safe clock switching: Clock sources can be changed safely on the flyin run mode through a configuration register. The clock signal is not switched until the new clock source is ready. The design guarantees glitch-free switching.
• Clock management: To reduce power consumption, the clock controller can stop the
clock to the core, individual peripherals or memory.

Environmental & Export Classifications of STM8S005K6T6CTR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

8BIT 32KB FLASH 32LQFP MCU IC Microcontroller STM8S005K6T6CTR


Product Tags:

8BIT 32KB MCU IC



32LQFP MCU IC



STM8S005K6T6CTR

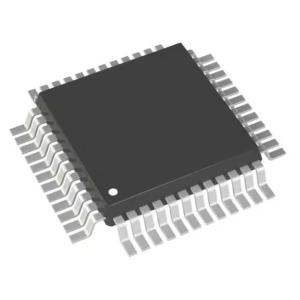

Quality 8BIT 32KB FLASH 32LQFP MCU IC Microcontroller STM8S005K6T6CTR for sale

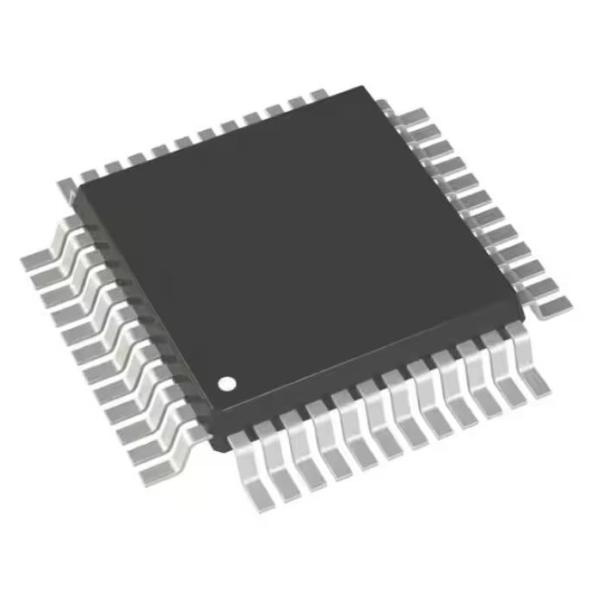

8BIT 32KB FLASH 32LQFP MCU IC Microcontroller STM8S005K6T6CTR Images
