MCP6H01T-E/LT Tvs Diode Smd Ic Opamp Gp 1 Circuit Sc70-5 MCP6H01T-E/LTCT-ND

Name: MCP6H01TELT Tvs Diode Smd Ic Opamp Gp 1 Circuit Sc705 MCP6H01TELTCTND
Brand: original
Price: 1 USD

Brand Name : original

Model Number : MCP6H01T-E/LT

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Digi-Key Programmable : Verified

Memory Type : Non-Volatile

Memory Format : EEPROM

Technology : EEPROM

Memory Size : 512Kbit

Memory Organization : 64K x 8

Memory Interface : SPI

Clock Frequency : 16 MHz

Contact Now

MCP6H01T-E/LT Tvs Diode Smd Ic Opamp Gp 1 Circuit Sc70-5 MCP6H01T-E/LTCT-ND

General Purpose Amplifier 1 Circuit Rail-to-Rail SC-70-5

Specifications of MCP6H01T-E/LT

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Linear
	Amplifiers
	Instrumentation, OP Amps, Buffer Amps
Mfr	Microchip Technology
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	1
Output Type	Rail-to-Rail
Slew Rate	0.8V/µs
Gain Bandwidth Product	1.2 MHz
Current - Input Bias	10 pA
Voltage - Input Offset	700 µV
Current - Supply	135µA
Voltage - Supply Span (Min)	3.5 V
Voltage - Supply Span (Max)	16 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Supplier Device Package	SC-70-5
Base Product Number	MCP6H01

FEATURES of MCP6H01T-E/LT

• Input Offset Voltage: ±0.7 mV (typical)

• Quiescent Current: 135 µA (typical)

• Common Mode Rejection Ratio: 100 dB (typical)

• Power Supply Rejection Ratio: 102 dB (typical)

• Rail-to-Rail Output

• Gain Bandwidth Product: 1.2 MHz (typical)

• Slew Rate: 0.8V/µs (typical)

• Unity Gain Stable

• Extended Temperature Range: -40°C to +125°C

• No Phase Reversal

Applications of MCP6H01T-E/LT

• Automotive Power Electronics

• Industrial Control Equipment

• Battery Powered Systems

• Medical Diagnostic Instruments

Environmental & Export Classifications of MCP6H01T-E/LT

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.33.0001

Quality MCP6H01T-E/LT Tvs Diode Smd Ic Opamp Gp 1 Circuit Sc70-5 MCP6H01T-E/LTCT-ND for sale

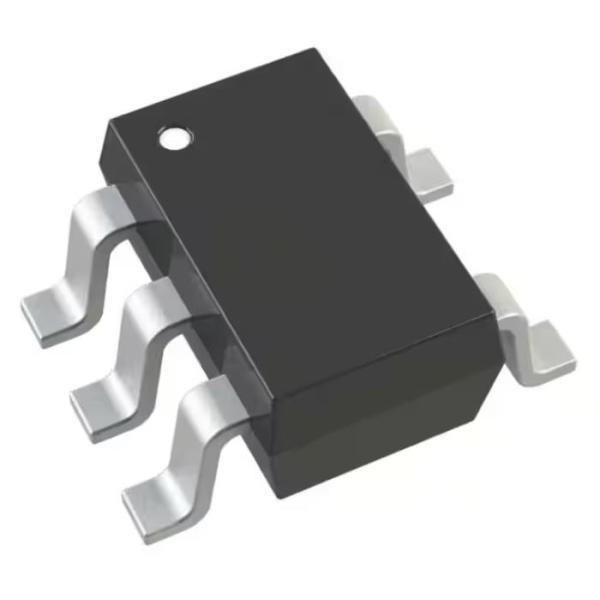

MCP6H01T-E/LT Tvs Diode Smd Ic Opamp Gp 1 Circuit Sc70-5 MCP6H01T-E/LTCT-ND Images
