LPC11E68JBD64E Microcontroller IC 32Bit Single Core 50MHz 256KB FLASH

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

LPC11E68JBD64E Microcontroller IC 32Bit Single Core 50MHz 256KB FLASH

Brand Name : original

Model Number : LPC11E68JBD64E

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Program Memory Size : 256KB (256K x 8)

Program Memory Type : Flash

EEPROM Size : 4K x 8

RAM Size : 36K x 8

Voltage - Supply (Vcc/Vdd) : 2.4V ~ 3.6V

Data Converters : A/D 10x12b

Oscillator Type : Internal

Operating Temperature : -40°C ~ 105°C (TA)

Contact Now

LPC11E68JBD64E Microcontroller IC 32-Bit Single-Core 50MHz 256KB FLASH 64-LQFP


LPC11E68JBD64E IC MCU 32BIT 256KB FLASH 64LQFP


Specifications of LPC11E68JBD64E

TYPE DESCRIPTION
Category Microcontrollers
Series LPC11Exx
Package Tray
Core Processor ARM® Cortex®-M0+
Core Size 32-Bit Single-Core
Speed 50MHz
Connectivity I²C, Microwire, SPI, SSI, SSP, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O 50
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 36K x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 3.6V
Data Converters A/D 10x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 64-LQFP
Supplier Device Package 64-LQFP (10x10)
Base Product Number LPC11


Features of LPC11E68JBD64E


*System:
- ARM Cortex-M0+ processor (version r0p1), running at frequencies of up to 50 MHz with single-cycle multiplier and fast single-cycle I/O port.
- ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC).
- AHB Multilayer matrix.
- System tick timer.
- Serial Wire Debug (SWD) and JTAG boundary scan modes supported.
- Micro Trace Buffer (MTB) supported.
*Memory:
- Up to 256 KB on-chip flash programming memory with page erase.
- Up to 32 KB main SRAM.
- Up to two additional SRAM blocks of 2 KB each.
- Up to 4 KB EEPROM.
*ROM API support:
- Boot loader.
- USART drivers.
- I2C drivers.
- DMA drivers.
- Power profiles.
- Flash In-Application Programming (IAP) and In-System Programming (ISP).

Applications of LPC11E68JBD64E


*Three-phase e-meter
*Car radio
*GPS tracker
*Medical monitor
*Gaming accessories
*PC peripherals


Environmental & Export Classifications of LPC11E68JBD64E

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001

LPC11E68JBD64E Microcontroller IC 32Bit Single Core 50MHz 256KB FLASH


Product Tags:

Single Core Microcontroller IC



256KB FLASH Microcontroller IC



LPC11E68JBD64E


Quality LPC11E68JBD64E Microcontroller IC 32Bit Single Core 50MHz 256KB FLASH for sale

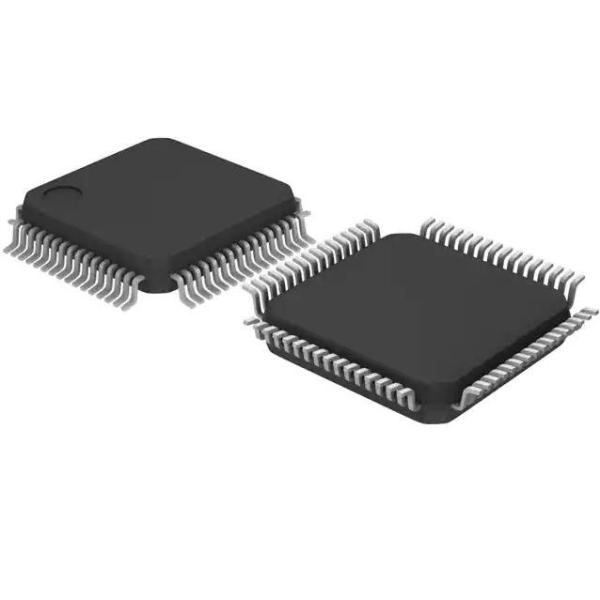

LPC11E68JBD64E Microcontroller IC 32Bit Single Core 50MHz 256KB FLASH Images
